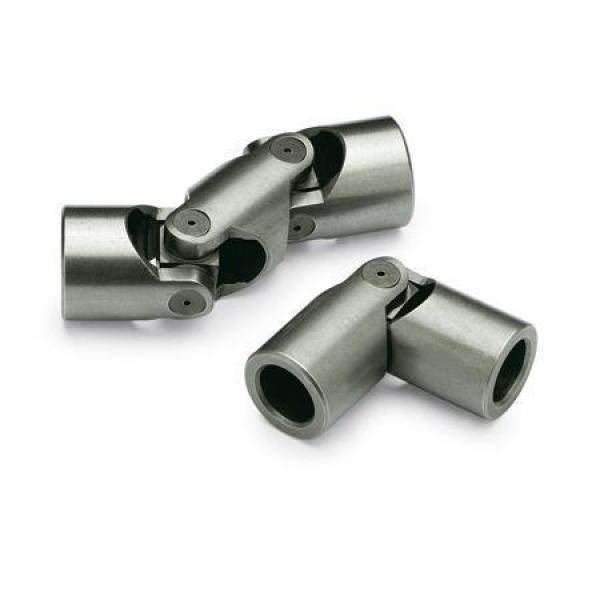

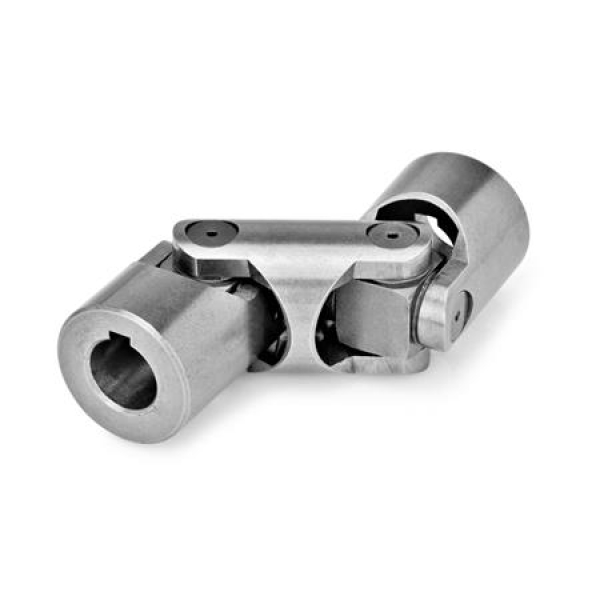

Die zulässige Drehzahl ist bei gleitgelagerten Kreuzgelenken DIN 808 in hohem Maße abhängig von Einsatzbedingungen, der Belastung, der Einsatzdauer, dem Beugungswinkel und der Schmierung. Bei Drehzahlen über 1000 min-1 sind in jedem Fall Kreuzgelenke mit Nadellager zu verwenden.
Bei Dauerbetrieb ist für eine auszureichende Schmierung zu sorgen, gegebenenfalls durch eine mit Fett gefüllte Schutzhülle GN 808

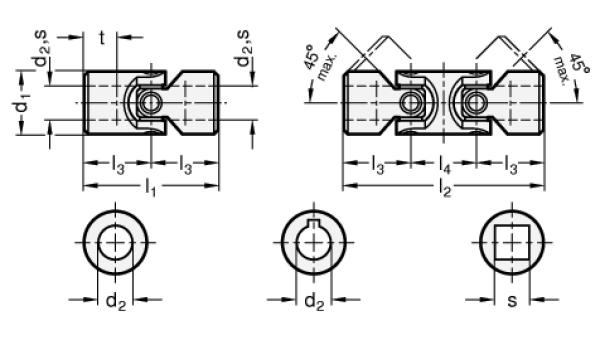

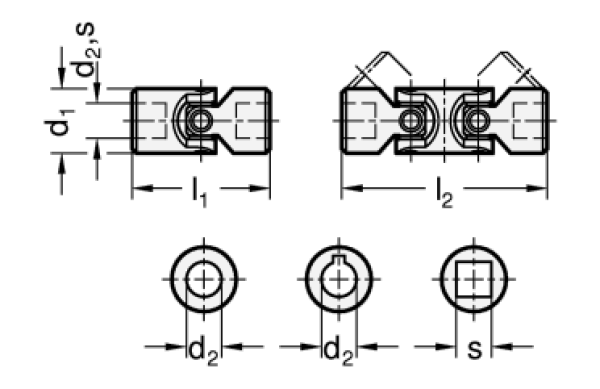

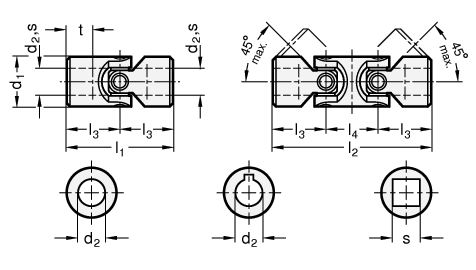

d1 |
d2 H7
Bohrung |
s H10
Vierkant |
l1

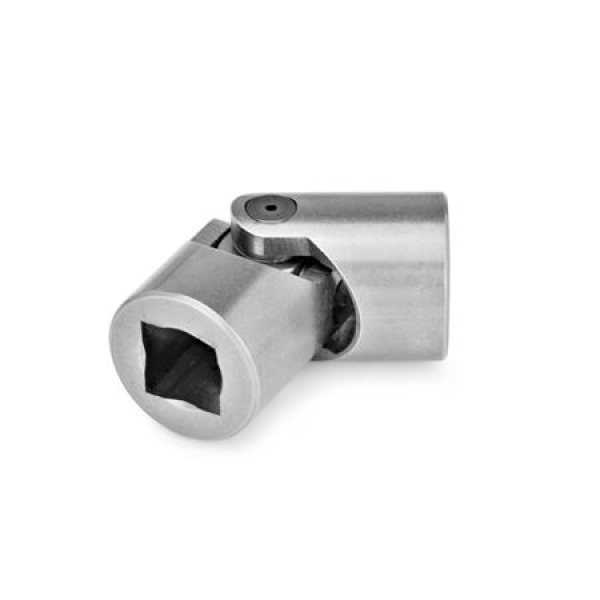

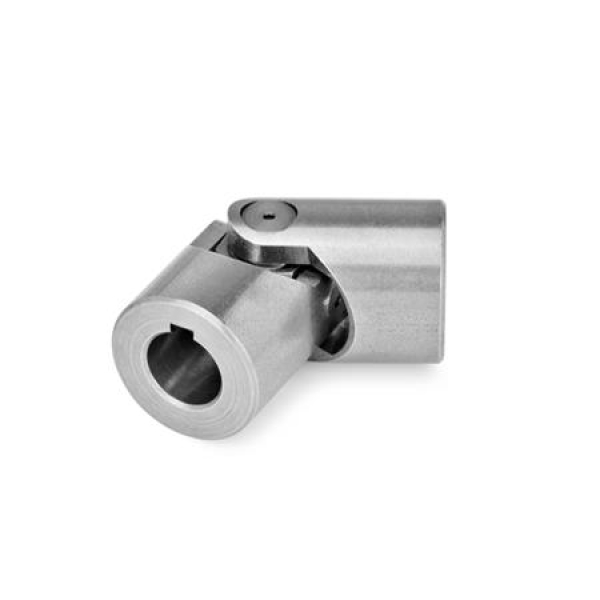

Form EG |
l2

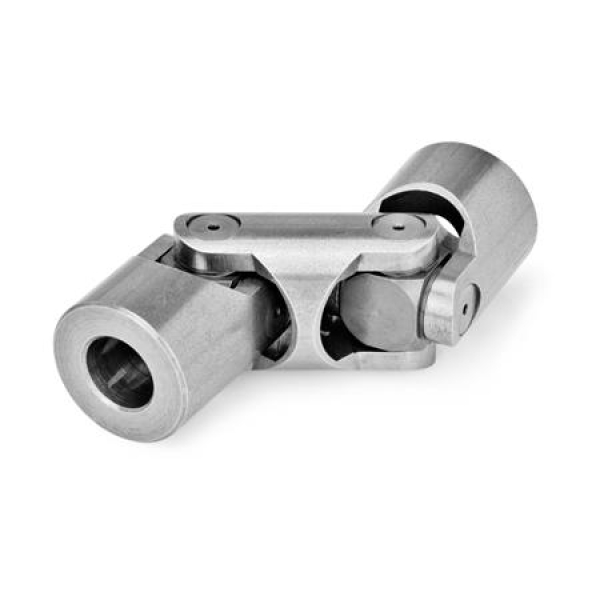

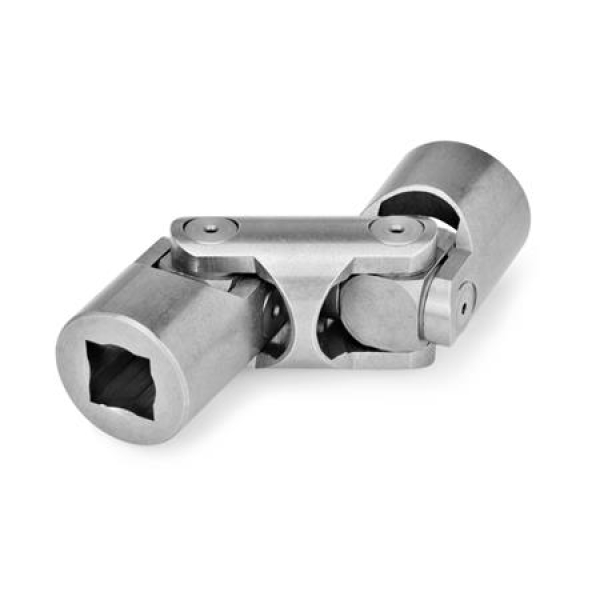

Form DG |
l3 |
l4 |
t +1
max. Einbaulänge
der Welle |
16 |
6 |
V 6* |
34 |
56 |
17 |
22 |
8 |
16 |
8 |
V 8* |
40 |
62 |
20 |
22 |
11 |
16 |
10 |
V 8* |
52 |
74 |
26 |
22 |
14 |
22 |
10 |
V 10* |
48 |
74 |
24 |
26 |
12 |
22 |
12 |
V 10* |
62 |
88 |
31 |
26 |
18 |
25 |
12 |
V 12* |
56 |
86 |
28 |
30 |
13 |
25 |
16 |
V 12* |
74 |
104 |
37 |
30 |
21 |
28 |
14 |
V 14* |
60 |
96 |
30 |
36 |
13 |
32 |
16 |
V 16* |
68 |
105 |
34 |
37 |
16 |
32 |
20 |
V 16* |
86 |
124 |
43 |
38 |
24 |
36 |
18 |
V 18* |
74 |
114 |
37 |
40 |
17 |
42 |
20 |
V 20* |
82 |
128 |
41 |
46 |
18 |
42 |
25 |
V 20* |
108 |
156 |
54 |
48 |
31 |
45 |
22 |
V 22* |
95 |
145 |
47,5 |
50 |
22 |
50 |
25 |
V 25* |
108 |
163 |
54 |
55 |
26 |
50 |
30 |
V 25* |
132 |
188 |
66 |
56 |
38 |
58 |
30 |
V 30* |
122 |
190 |
61 |
68 |
29 |
58 |
32 |
V 30* |
130 |
198 |
65 |
68 |
33 |
70* |
35 |
V 35 |
140 |
212 |
70 |
72 |
35 |
* i. d. R. nicht auf Lager, erfordert Mindestbestellmenge
