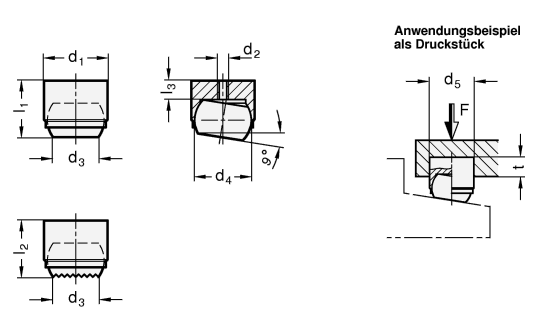

Pendelelemente GN 709.2 werden als bewegliche Auflagen oder Druckstücke zum Spannen von Werkstücken verwendet. Sie können auch als Anschlag eingesetzt werden.
Die Kugel kann max. 9° verdreht werden| gegen weiteres Verdrehen ist sie gesichert.
d1 n6 |
d2 |
d3 |
d4
Kugel-Ø |
d5 H7
Aufnahme-
bohrung |
l1 ±0,02
Form
B, R |
Form
BR, RR |
l2 ±0,1
Form
B, R |
Form
BR, RR |
l3 max.
Form
B, R |
Form
BR, RR |
t min.
für maximale Belastbarkeit
Form
B, R |
Form
BR, RR |
Statische
Belastbarkeit
max. in kN |
12 |
M 3 |
7,2 |
10 |
12 |
11 |
17 |
11 |
17 |
3,2 |
3,2 |
6 |
12 |
10 |
18 |
M 4 |
10,5 |
16 |
18 |
17 |
23 |
17 |
23 |
4,0 |
4,0 |
8 |
14 |
25 |
28 |
M 5 |
20 |
25 |
28 |
25 |
34 |
25 |
34 |
5,5 |
6,0 |
13 |
22 |
90 |
